Capture up to 128 EMG channels
1 of 5Low latency real-time streaming
2 of 5Advanced API integrations
3 of 5High data throughput capacity
4 of 5Customizable system configurations
5 of 5
Measure full body motion with 32 sensor system capacity
1 of 5Extended wireless range of 40m+
2 of 5Customizable triggering
3 of 5Compatible with Trigno Link for system wide assessments
4 of 5Integrations with common biomechanics tools
5 of 5
High frequency analog input
1 of 5Compatible with range of HDsEMG and EMG sensors
2 of 50ms inter-sensor latency
3 of 5Compatible with Trigno Link for system wide assessments
4 of 5Ultra-low noise baseline for reliable EMG recordings
5 of 5Trigno Centro offers unparalleled flexibility. Design your system to be as unique as your research.
Unified data collection for simplifying the ability to plot and store your measurements
40m+ and benefiting from the dual antenna for transmission diversity
Proprietary RF communication over the 2400-2483 MHz (ISM band) frequency
32 sensors from the single Trigno Centro receiver
4 in-built BNC trigger ports for input, output, 5V or 3.3V, and constant time synchronization pulses.
Input 6 channels of high-frequency analog data up to 48KHz.
3.5mm connector for 48KHz audio sampling

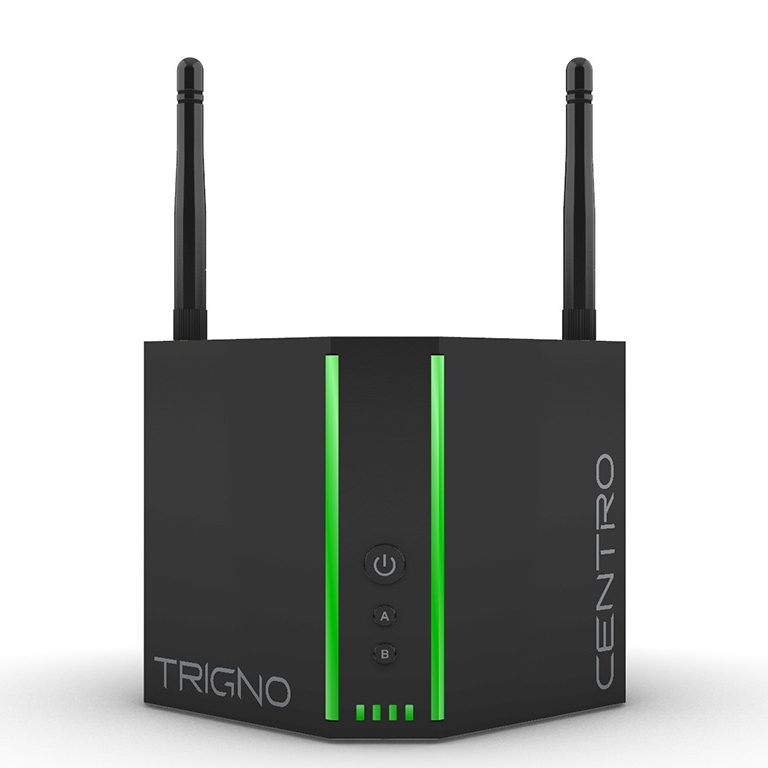

Wireless Protocol
Proprietary RF communication over the 2400-2483 MHz (ISM band) frequency
1 of 1

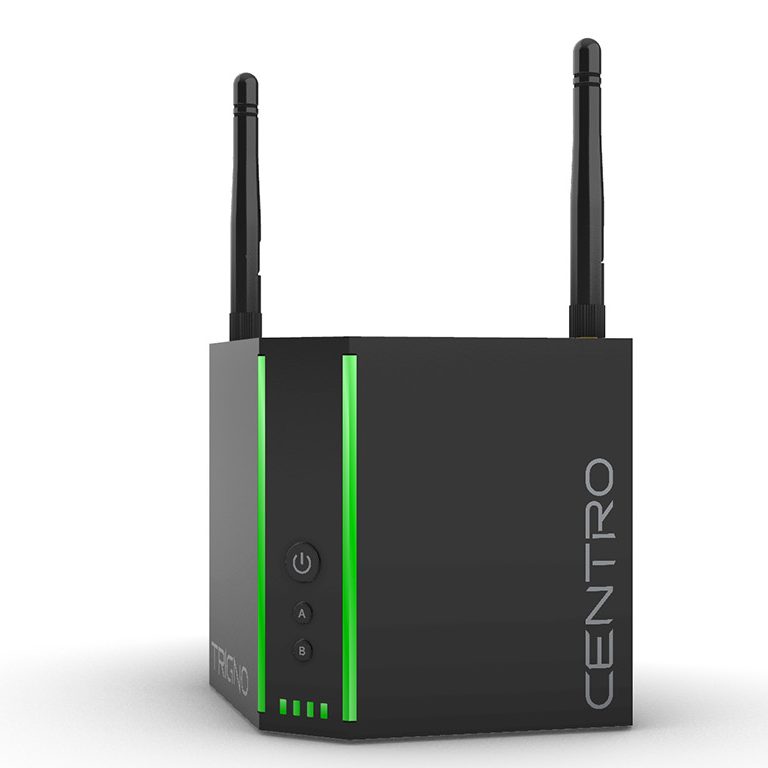

Wireless Range
40m+ and benefiting from the dual antenna for transmission diversity
1 of 1

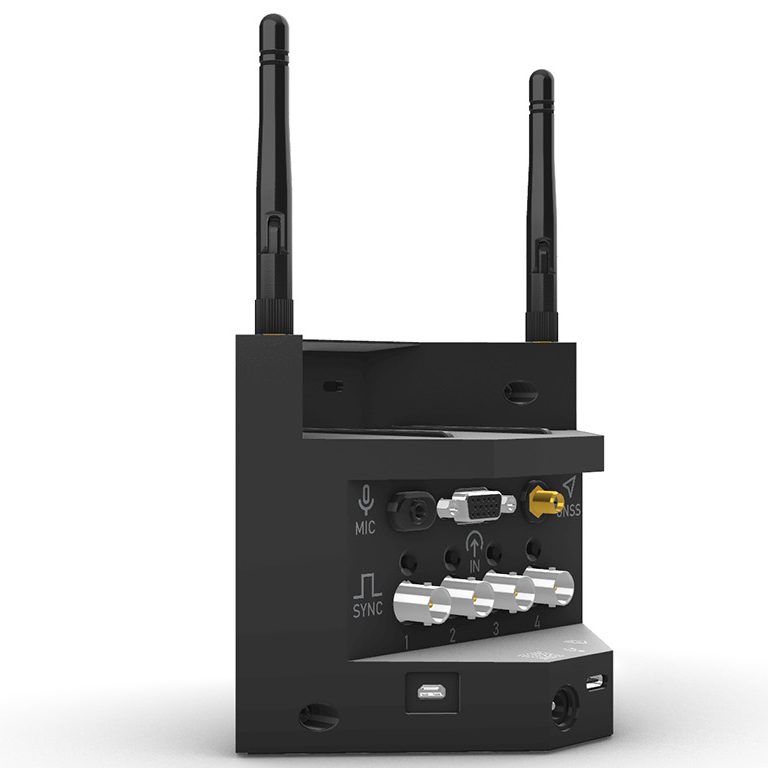

Microphone Input
3.5mm connector for 48KHz audio sampling
1 of 1
Triggering
4 in-built BNC trigger ports for input, output, 5V or 3.3V, and constant time synchronization pulses.
1 of 1
Analog Inputs
Input 6 channels of high-frequency analog data up to 48KHz.
1 of 1
Sensor Capacity
32 sensors from the single Trigno Centro receiver
1 of 1
