Collecting Data: Step 3 - Physically Placing the Sensors

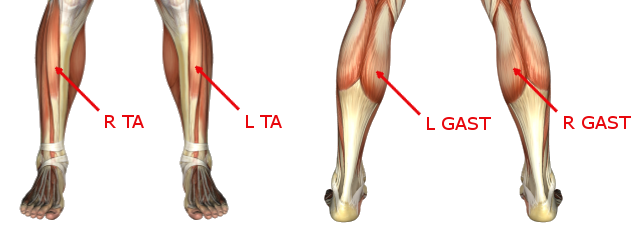

The sensors should be placed on the muscles as indicated in this diagram:





The fifth sensor will only be collecting impact filtered accelerometer data, meant to capture step actions.  Place this sensor on the left foot, near heel with the arrow on the sensor pointed up along the lower leg.  This orients the x-axis up, meaning that the X channel is the one that will contain the most accurate data.
