Trigno System Information

The information tab presents information pertaining to the system and its settings

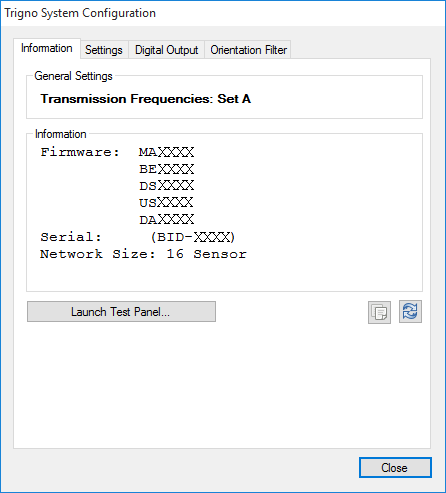

Figure 3 - Trigno Wireless System information

Transmission Frequencies

Wireless communication occurs on varieties of frequencies throughout the acceptable 2.4 GHz spectrum.  Four frequency sets are available ("A", "B", "C", "D").  The current frequency set is shown here.

Firmware Version

Delsys may occasionally release firmware upgrades to improve and evolve the functionality of Trigno Systems.  The current firmware version is shown here

Serial Number

Each Trigno Base Station has a unique serial number and identifier address which is shown here.

Network Size

Indicates the number of sensors supported by this base

Launch Test Panel

Places the Trigno Base Station in a test mode to assist with verification of analog output signal connections.  Each of the 64 analog output channels is configured to produce a unique sinusoid which can be verified by properly sampling these channels with a secondary acquisition system.

Copy

Copies the data in the information tab to the clipboard.

Refresh

This button refreshes the status information.
