Review and Save

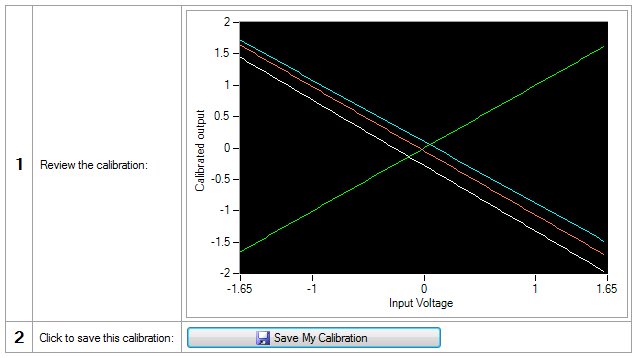

Step 1 plots the input and output mapping for each channel in the sensor.  Along the X-axis, the full range of output voltages observed by the A/D device is shown.  Along the Y-axis, the corresponding input signal which will be displayed by the software (according to the calibration points defined in the previous step) is shown.  This preview allows a quick check for common errors during calibration.  Common errors which can be seen are:

The Back button may be used to collect calibration data again if needed.  If the calibration appears satisfactory, then click Save My Calibration in step 2.  Clicking Finish returns to the Test Configuration Editor and sets the calibration for the selected sensor.  Clicking Finish without saving will not save the calibration.
